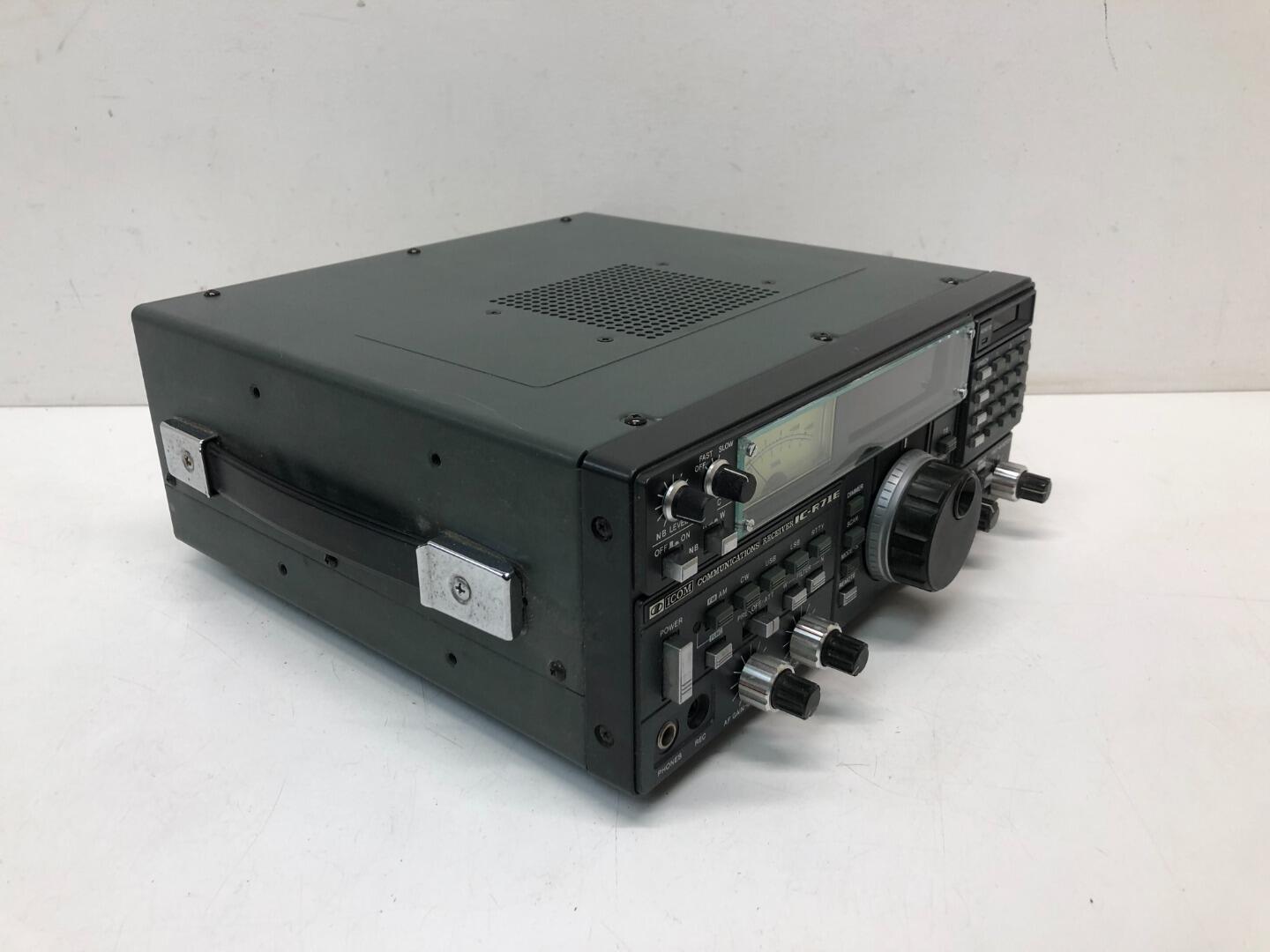

Icom IC-R71E Communications Receiver
- More Information
The receiver powers on and it appears to be functionig as it should. If there any issues, it can be returned and as long as the serial number matches our records and our warranty labels are undamaged, we will issue a full refund.
Features:
• Frequency Coverage: 100kHz ~ 30MHz
• Modes: AM, USB, LSB, CW, RTTY and FM (optional unit fitted)
• Sensitivity (When preamplifier is ON)
SSB, CW, RTTY, less than 0.15μV (0.1~1.6MHz :1μV) for 10dB S=N/N
AM less than 0.5μV (0.1~1.6MHz :3μV)
FM less than 0.3μV for 12dB SINAD (1.6 ~ 30MHz)
• Selectivity:
SSB, CW, RTTY
2.3kHz at -6dB( adjustable to 500Hz min), 4.2kHz at -60dB
CW-N, RTTY-N
500Hz at -6dB, 1.5kHz at -60dB
AM
6kHz at -6dB ( Adjustable to 2.7kHz min), 15kHz at -50dB
FM
15kHz at -6dB, 25kHz at -60dB
